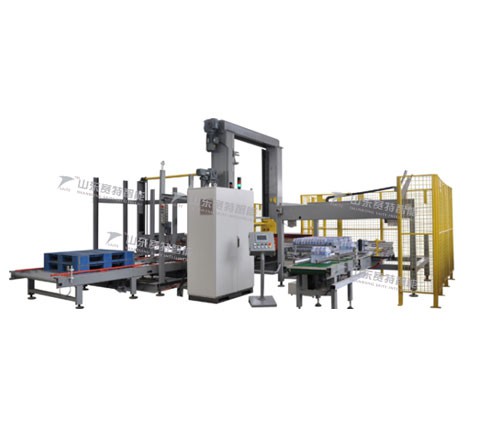

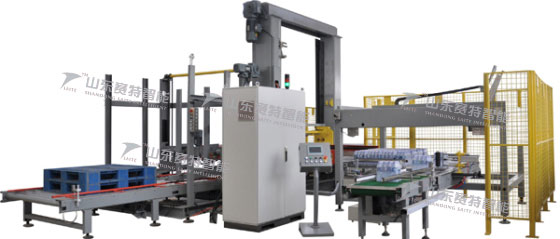

Stacker crane is applicable to the pileup of various packages such as paper carton, plastic box, film bag, barrel, etc. The equipment host is divided into feeding of box and conveying, marshalling station, trolley, buttress plate conveying, etc. The baffle device of stacking layer can be selected to increase the stability of stacking layers. Various working forms are designed for different stacking requirements, and the production speed can reach 24,000-72,000BPH.
Technical advantages:
1. The box-arranging institution can arrange the entry boxes in the arrangement mode needed by stacking;
2. Box transmission chain is configured in monitoring equipment of box storage and automatically adjusts the production speed as per the monitoring data;
3. Structure is simple and easily maintained;
4. Safety protection devices can automatically shut down for alarm in abnormal condition.
Technical parameters:
1. Productivity of equipment:
60 boxes/minute (3*4 bags for packing in general, 16 boxes per layer, ## meets the 36,000 bottles/hour production needs in production line)
2. Variety of stacked boxes: (a) Paper carton (b) plastic box (c) film bag
3. Dimension of host: 5050*2780*3930mm (L*W*H)
4. Tray dimension: 1100mm*1100mm*150mm (standard)
Note: Please contact Technology Department in case of nonstandard dimension of buttress plate.
5. Equipment power: 24Kw (including marshalling station, host, five-section roller conveying and stacking, board warehouse machine, double-speed belt conveyer channel subdivider, and one-section box-rotation conveying drum)
6. Compressed air: (a) Pressure: min： 0.5MPa (b) Air consumption: max: 200L/min
7. Equipment weight (host): 4.6T
8. Ground load: ∽8 X 750Kg
9. Horizontal angle: ±1°
10. Noise: ≤85dB
